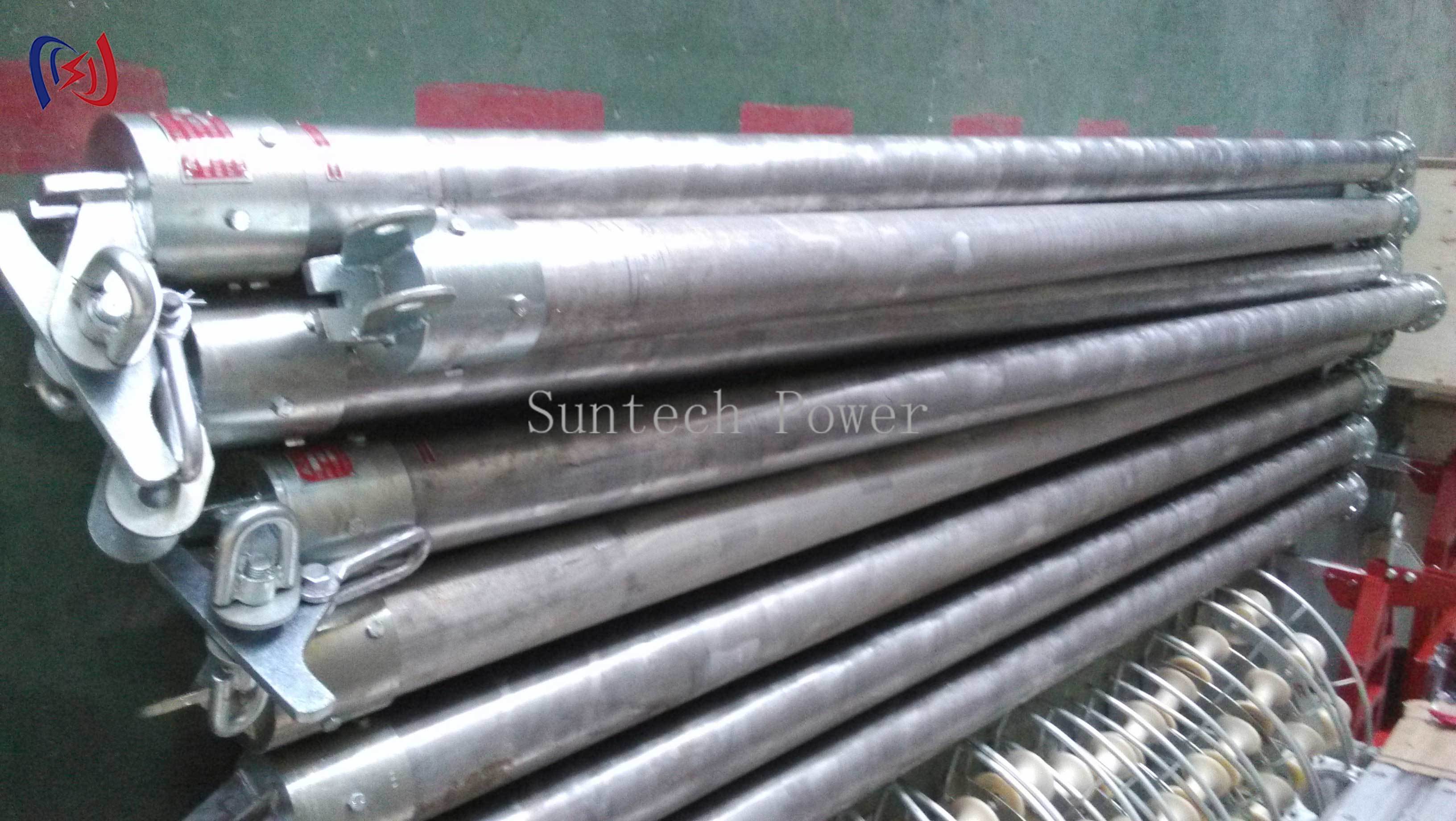

High-Strength Steel Tubular Gin Pole for Internal Suspension Lifting
Features:
The Inner-Suspended Tubular Gin Pole is a high-performance lifting system specifically designed for internal suspension applications in transmission tower construction and maintenance. Its robust tubular design offers exceptional strength-to-weight ratio and features:
High-grade steel or aluminum construction with optional galvanization
Smooth inner wall surfaces for reduced friction during operation
Integrated lifting lugs for secure load attachment
Precision-engineered base plate for stable mounting
Corrosion-resistant finishes suitable for coastal environments
Working Principle:
The tubular pole is suspended internally within the tower structure
A top-mounted sheave assembly guides the lifting cable
The load is raised vertically through the center of the pole
Stabilizing guides prevent load swing during elevation
The modular design allows incremental height adjustments as construction progresses
Applications:
Transmission tower erection and component installation
High-voltage equipment maintenance
Substation construction projects
Telecommunication tower assembly
Bridge cable installation
Advantages:
✔ Space-efficient design - operates within the tower's footprint
✔ Superior load control - minimal lateral movement during lifts
✔ Weather-resistant construction - performs in all conditions
✔ Reduced setup time - quick assembly with minimal components
✔ Enhanced safety - eliminates external swing hazards
Service & Support:
Site-specific engineering analysis available
Load test certification with each unit
24/7 technical support for installation queries
Specifications
| Item number | Model | Length (M) | Diameter*wall (MM) | Vertical Load (KN) | Safety Factor (K) | Weight (KG/M) |
| 03101 | LBNXG120 | 9-11 | 120x7 | 5-9 | 2.5 | 7.5 |
| 03111 | LBNXG150 | 9-11 | 150x6 | 10-15 | 2.5 |
