Hoisting Aluminous Alloy Tower Erection Tools Nylon Sheave Tackle QHN Model
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Hoisting Aluminous alloy and MC nylon sheave tackle are suitable fordifference diameter steel ropes; the wheels are mounted on ball bearings.
Theframe is made of aluminium alloy or galvanized steel. Rope and swivel joint notincluded.
| Item number | Model | Number of sheaves | Rated load (kN) | Roller Diaxwidth (MM) | MAX. Rope Diamete (mm) | Weight (kg) |
| 11101 | QHN1x1 | 1 | 10 | Φ100×31 | Φ8 | 2 |
| 11102 | QHN1x2 | 2 | Φ80×27 | Φ6 | 2 |
| 11103 | QHN1x3 | 3 | Φ80×27 | Φ6 | 2 |
| 11111 | QHN2x1 | 1 | 20 | Φ120×35 | Φ10 | 2 |
| 11112 | QHN2x2 | 2 | Φ100×31 | Φ8 | 3 |
| 11113 | QHN2x3 | 3 | Φ100×31 | Φ8 | 4 |
| 11121 | QHN3x1 | 1 | 30 | Φ150×39 | Φ11 | 3 |
| 11122 | QHN3x2 | 2 | Φ120×35 | Φ10 | 4 |
| 11123 | QHN3x3 | 3 | Φ100×31 | Φ8 | 5 |
| 11131 | QHN5x1 | 1 | 50 | Φ166×40 | Φ13 | 5 |
| 11132 | QHN5x2 | 2 | Φ150×39 | Φ11 | 6 |
| 11133 | QHN5x3 | 3 | Φ120×35 | Φ10 | 5 |
| 11141 | QHN8x1 | 1 | 80 | Φ205×49 | Φ18 | 7 |
| 11142 | QHN8x2 | 2 | Φ166×40 | Φ13 | 8 |
| 11143 | QHN8x3 | 3 | Φ150×39 | Φ11 | 8 |
| 11151 | QHN10x1 | 1 | 100 | Φ246×60 | Φ20 | 11 |
| 11152 | QHN10x2 | 2 | Φ166×40 | Φ13 | 10 |
| 11153 | QHN10x3 | 3 | Φ150×39 | Φ11 | 12 |
Uses:Apply to assemble and erect the tower,line construction,hoist devices and other hoist operation.
Features:Product is made of aluminum alloy plate with MC nylon wheel,it has light weight.
Explain:Accessories style is need to indicated such like open type,close type,hook type and ring type when customer place order.
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Product Tags:
|
|

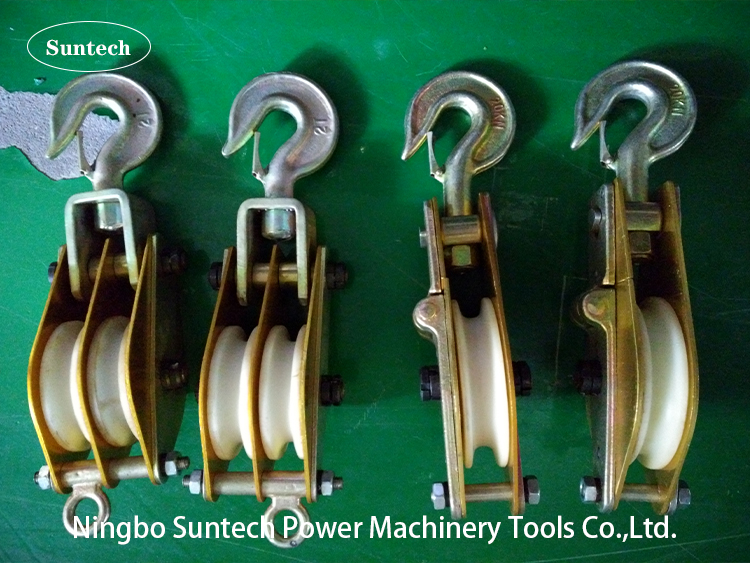

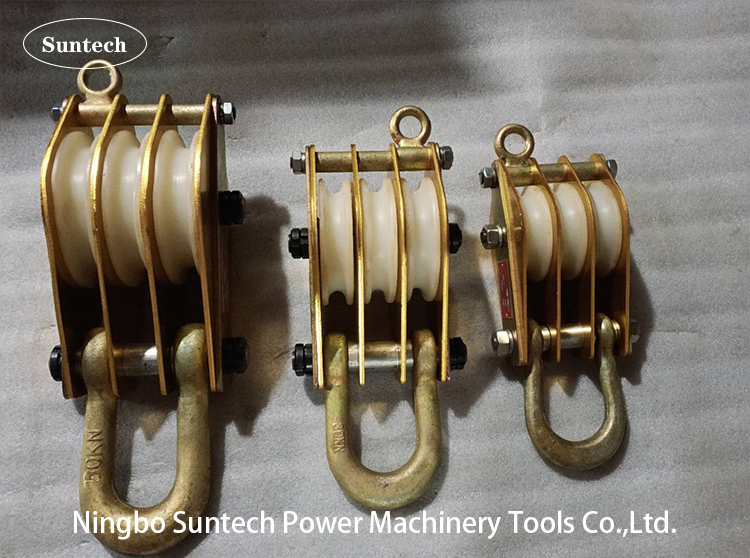

Aluminum Alloy Tower Erection Tools Nylon Sheave Hoisting Tackle QHN Model Images
|
